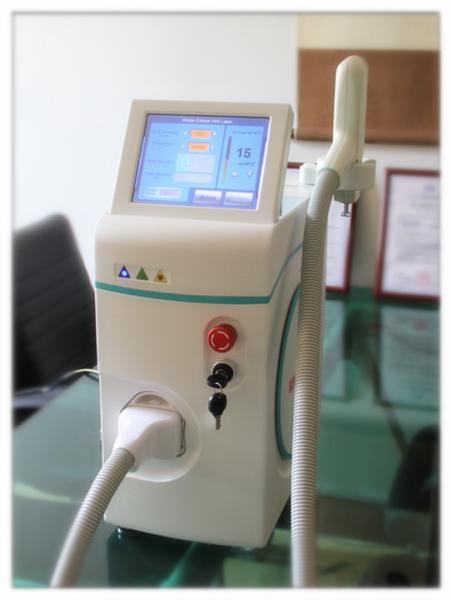

Home Wrinkle Removal 2940nm Erbium Yag Laser with CE Certificate
Model: MES-610
- 2940nm laser output
- Smart handpiece delivery
- 7×7,9×9,13×13 MLA optional
- Intelligent alarm system
Why 2940nm Er:YAG laser?
The Er:YAG laser produced 2940nm laser which has peak value of
absorption to
water, then it can be well-absorbed by water. The absorption
coefficient is 10 times of
CO2 laser.
So Er:YAG laser can dispel thinner tissue than CO2 laser, it can
only penetrate the
skin moist a few microns
in depth, their skin in a time of relaxation 1-5ms, the extent of
the damage stranded
heat also very light, not vaporization of the organization of the
solidification of a thin
layer, bleeding only needle size.
The new fractional 2940nm laser that represents a new option to
perform skin
resurfacing on aged and photo-damaged skin: it is a safe and
effective treatment with
little patient downtime and discomfort, no analgesia and
no gel or consumables required.
Multi-treatment Mode to Patient’s Expectation
The penetrate depth depend on the pulse width of laser. So, you can
choose and
control the treatment mode
by different pulse width to suit patients’ expectations. All the
parameters setting just
on screen by touch.
Short pulse mode: with fast surface treatment
Long pulse mode: with deeper increased thermal effect
Mixed mode: alternate with short and long pulse
High energy, provide the fast and effective treatment result
1. High energy density output with wide range of pulse width adjust
2. Multi-tips for your treatment: 7×7,9×9 and 13×13
3. Update to fractional application with optional MLA handpiece
easily
Intelligent ICMS
ICMS™ is our superior design on water cooling system management. The
intelligent cooling management system provided real time monitor
for the water cooling status.
All the alerts of cooling system are monitored by MCU control
system,once any function work unproperly, the MCU would protect the
system with corresponding procedures.Thus, you can work with
MES-610 for longtime without any worries and break.
Typical Application
1.Skin resurfacing for improvement fine lines and wrinkles, skin
laxity, tone
2.Acne scar removal, superficial skin lesions revision
3.Pigmented lesions treatment
Specifications
l Laser Type: Er:YAG Laser;
l Wavelength: 2940nm;
l Max.Energy output: 1.8J/cm2( 1.5J/cm2 for desktop) Max;
l Pulse Width: 0.3-1.0ms( 0.3ms for desktop);
l Max.repetition Rate: 1-5Hz( 2Hz for desktop);
l Spot Size(Single mode): φ1-7mm(φ7mm for desktop)
l Fractional MTZ:7×7,9×9(option),13×13(option)
l Cooling System: Closed Cycle Water to Air Heat Exchanger;
l Control System: 8.4"TFT color touch screen;
l Electrical Power: 220VAC,50/60Hz;
l Net Dimensions: 435(H)×225(W)×375(D)mm;
l Net Weight: 20Kg.
